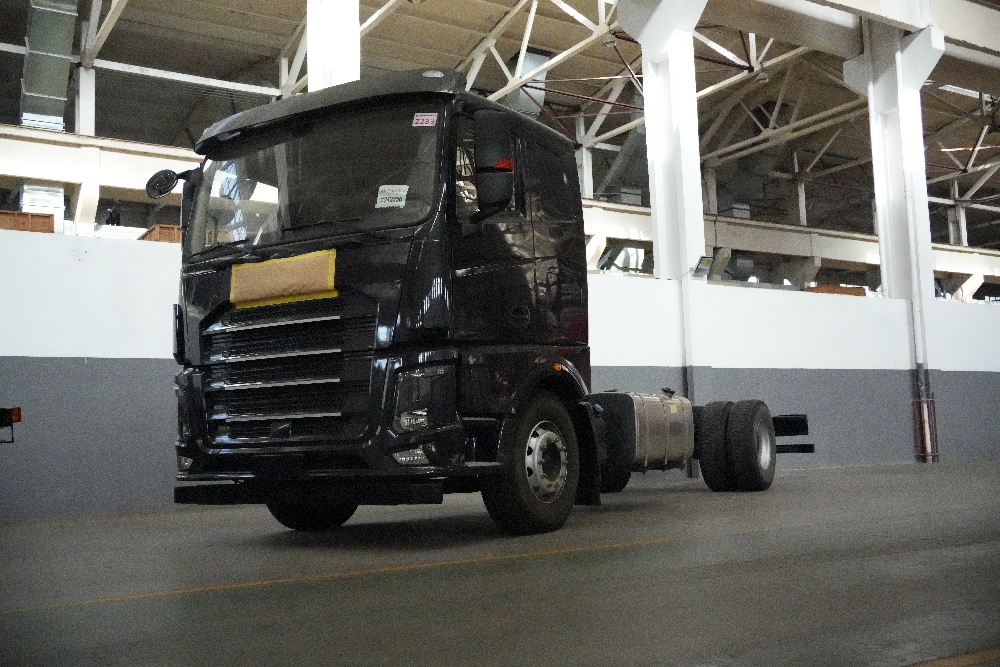

19-tonne 4x2 Cargo Truck
| Dimensions&Weight 尺寸和重量 |
Overall length（mm）外形尺寸 | 9150×2550×3285 |
| Front overhang (mm)前悬 | 1550 | |
| Rear overhang (mm)后悬 | 2400 | |
| Wheelbase轴距(mm) | 5200 | |
| Tread（mm）轮距 | 2059/1864 | |
| GVW(kg）总重 | 19000 | |
| Curb Weight Without Upper Body(KG) 不含上装整备质量 |
7960 | |
| Rated Payload (KG) (额定载重） | 11040 | |
| Actual Max Gross Weight(KG） （实际最大总质量） |
22000 | |
| Actual Testing Max Payload (KG) (实际测试 最大承载重量） |
14040 | |
| Performance 性能参数 |
Drive type驱动形式 | 4×2 |
| Max. speed(km/h)最高速度 | ≤90 | |
| Gradeability(％)爬坡度 | >30% | |
| Minimum ground clearance (mm) 最小离地间隙 |
＞250 | |
| Minimum turning radius(m) 最小转弯半径 |
＜12 | |
| Cabin 驾驶室 |
Model型号 | QXPW22TGA Flat Roof Cabin QXPW22TGA 平顶驾驶室 |
| Dimension（mm）尺寸 | 2200×2500×2790 | |
| Sleeper卧铺 | 1 foldable bed 1个折叠床 | |
| Tilting Mechanism翻转机构 | Manual and electric integrated 手电一体 | |
| Engine 发动机 |
Model型号 | Commins ISD300 50 康明斯发动机 ISD300 50 |
| Four-stroke四冲程 | √ | |
| Turbocharged涡轮增压 | √ | |
| intercooled中冷 | √ | |
| high-pressure common rail fuel system 高压共轨燃油系统 |
√ | |
| Max. Power(hp)最大功率 | 300HP | |
| Max torque（N.m/rpm）最大扭矩 | 1100 | |
| Displacement (L) 排量 | 6.7 | |
| Controller type控制器类型 | electrical 电控 | |
| Emission排放 | Euro V + EEV，SCR | |
| Transmission 变速箱 |
Model型号 | FAST 9JS135T-B, with PTO 法士特9JS135T-B，带取力器 |
| Type类型 | Dual Auxiliary Rail,Cast Iron Housing Structure 双副轨，铁质壳体结构 |
|
| Operation Type操纵型式 | Cable-operated,single H valve软轴操纵，单H阀 | |
| Max. input torque(N.m) 最大输入扭矩(N.m) | 1350 | |
| Gear档位 | Manual手动 | |
| Forward Gear 前进挡 | 9 | |
| Reserve Gear 倒挡 | 1 | |
| Ratio速比 | 12.11/8.08/5.96/4.42/3.36/2.41/1.77/1.32/1.00 R=12.66 | |
| Clutch 离合器 |
Brand品牌 | FAST-EATON 法士特伊顿 |
| Type类型 | Single 、 dry plate clutch 单片、干式离合器 | |
| Plate diameter板直径（mm） | φ430 | |
| Suspension 悬置 |
Front前悬 | Leaf spring, ZF shock absorber, stabilizer 板簧，ZF减震器，稳定杆 |
| Rear后悬 | Air suspension 2气囊，带导向臂式空气悬架 | |
| Axle 车桥 |
Front Axle Rated Load(kg) 前桥额定载荷 |
7.5T |
| Rear Axle Rated Load(kg) 后桥额定载荷 |
13T | |
| Rear Axle Ratio后桥速比 | 4.625 | |
| Pitch Circle Diameter 车轮螺栓分度圆直径（mm） |
φ335 | |
| Brake Drum Size制动盘尺寸 | 22.5 | |
| Brake 制动系统 |
Type类型 | Front Disc/Rear Disc 前后盘式制动 |
| Auxiliary braking辅助制动 | Exhaust butterfly valve auxiliary brake 排气蝶阀辅助制动 |
|
| EBS | √ | |
| AEBS | √ | |
| EVB排气门制动 | √ | |
| ESC | √ | |
| ABS layout form ABS布置方案 | 4S/4M | |
| Steering 转向系统 |
Brand 品牌 | Bosch 博世 |
| Type类型 | Recirculating ball type hydraulic power steering 循环球式液压动力转向 |
|
| Ratio速比 | 22.2-26.2:1 | |
| Wheel 车轮 |
Type类型 | 315/80R22.5-18PR |
| Rim size（inch ）轮辋尺寸 | 22.5*9.00 | |
| Rim material 轮辋材料 | Steel 钢 | |
| ELECTRICS 电气 |
Starter 起动器 | Engine belt发动机带 |
| Alternator 交流发电机 | Engine belt发动机带 | |
| Battery capacity (A. H) 电池容量 | 165*2 | |
| FUEL TANK 油箱 |
Capacity 容量 | 550L |
| Material 材质 | Aluminum alloy 铝合金 | |
| Ad-Blue Tank 尿素箱 |
Capacity 容量 | 35L |
| Safty standard 安全标准 |
LDWS | √ |
| Day light running lamp 日间行驶灯 | √ | |
| FCW 前向碰撞预警系统 | √ | |
| AUTO LIGHT 自动大灯 | √ | |
| Cruise Control 定速巡航控制 |
√ | |
| Basic equipment 基础配备 |
Automatic air conditioning，with defrost function 自动空调，带除霜功能 |
√ |
| Front and Rear Fog lamps 前后雾灯 | √ | |
| LED headlights LED 前大灯 | √ | |
| USB port | 1 | |
| Front camera 前摄像头 | √ | |
| Driver air Suspension seat 驾驶员气囊座椅 |
√ | |
| Remote control central door lock 遥控中央门锁 |
√ | |
| Event Data Recorder 事件数据记录器 |
√ | |
| Power windows电动车窗 | √ | |

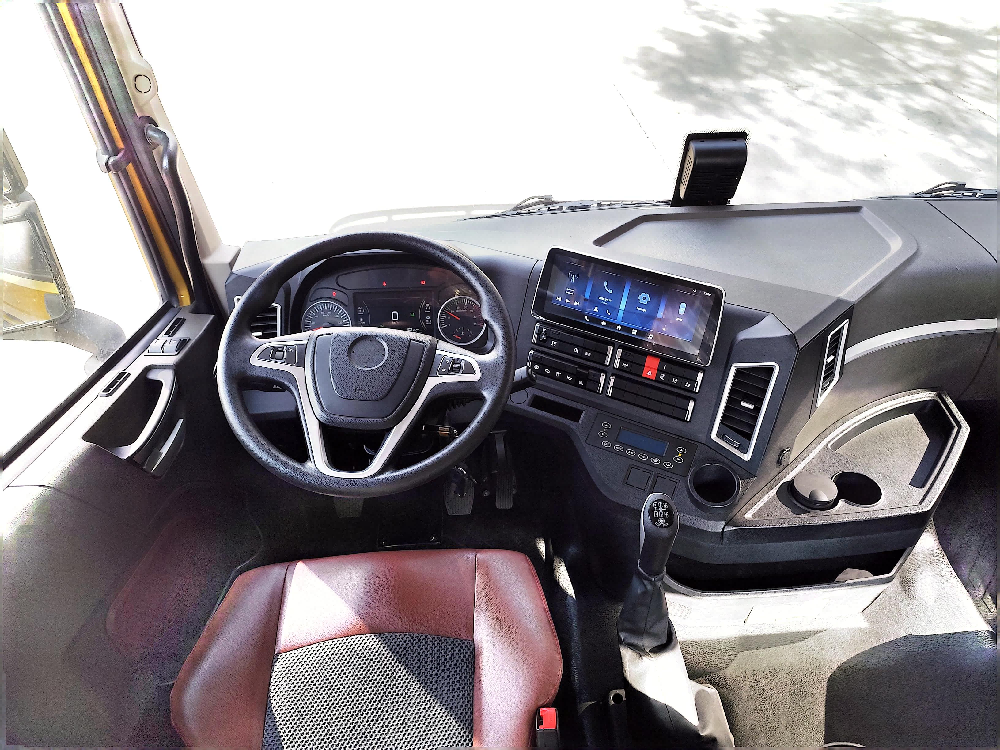

| 12.3 inch smart large screen 12.3寸智能大屏 |
√ | |
| Front sun shade/Left side visor 前遮阳板+左侧遮阳板 |
√ , Front sun visor can be swiveled to the left 前遮阳板可转至左侧 |
|
| 12V Sockets (Two) 12V 插座（两个） |
√, transformer is required 需要变压器 |
|
| Functional Steering Wheel 多功能方向盘 |
√ | |
| Battery switch 电池开关 | √ | |
| Reverse alarm 倒车警报 | √ |
Product Features
1. Equipped with Cummins Euro V Engine matched with Fast 9+1 Manual Transmission
2. Fitted with Knorr AEBS to upgrade active braking safety
3. LDWS, FCW, ESC, automatic headlights and cruise control available
4. Trusted Bosch Steering System for accurate handling
5. Rear air suspension delivers excellent ride comfort
Company introduction
Hubei Qixing Group is a state-owned large-scale enterprise group, which was founded in 1980. We're a national key high-tech enterprise, which mainly engaged in the production and operation of automobile body& chassis, automobile mould, special vehicle and spare parts, intelligent equipment, photovoltaic energy, new energy, etc. Qixing has two major industrial parks which are Qixing Machinery and photovoltaic comprehensive development park, five major service entities which are international trade, hotel, logistics, natural gas and real estate. Qixing Group has 18 subsidiaries and more than 2,600 employees, covering an area of 1.33 million square meters and total assets is more than 5 billion yuan. The annual output value is more than 7 billion yuan. The vehicle body is the pillar industry of the Qixing Group.
Our Services
1. Design and produce all kinds of truck cabins, SKD/CKD trucks, Electric trucks and their related tooling for different uses;
2. Design new inner decoration and outer vehicle body;
3. Develop new moulds and tooling& jig;
4. Design and produce the interior parts like the door trim, dashboard, roof ceiling, floor mat etc.;
5. Full production lines like pressing, welding, painting, generally assembling, test and so on;
6. Modification on existing cabin, truck and electric truck to meet the customer's requirements;
7. Design power train and totally new diesel truck and electric trucks.
Workshop
Qixing has our own technical center which is in charge of the design and development, we also have the full production lines, such as casting line, CNC center for making the mould, automatic pressing line/ welding line/ painting line, general assembly line, test center and so on, which means we could control the every single process to ensure the quality of our products.
Packing & Delivery
1.CBU: Bare/naked by RO-RO;
2.SKD: Special transportation bracket/frame for cab, frame, cargo box, engine, gearbox, front and rear axle, etc. or special wooden case packing for export;
3.CKD: The six major parts of the cab are packed with special iron frame and winding film to ensure which is anti-rust and anti-corrosion, and the other parts are packed in the same way of SKD condition.
4.Or packing in accordance with the all requirements of the customer.
