Heavy Duty Truck

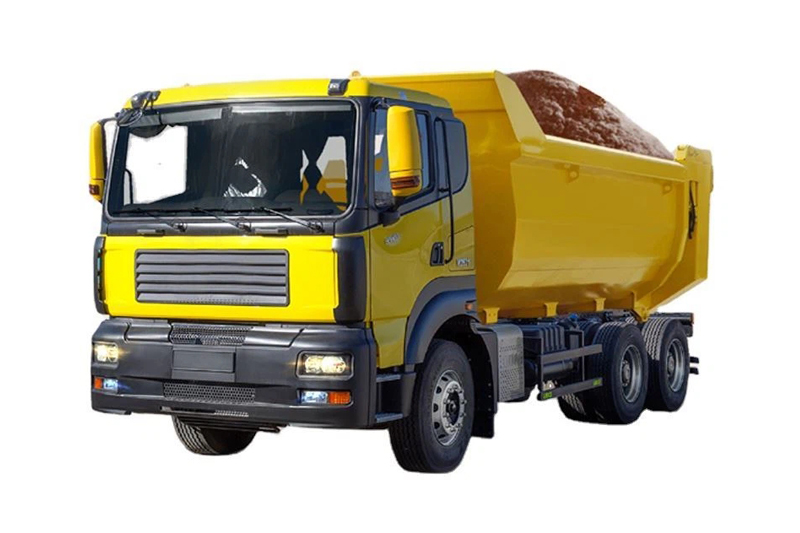

26 Ton Heavy Duty Dump Truck

Driving Type 6×4 Displacement criterion EUR II
Gross vehicle weight 26,000 kg Maximum loading capacity 15,000 kg
Engine Type Diesel, 4-stroke, direct injection engine Engine model Steyr WD12.336
Engine 6-cylinder in-line with water cooling, turbocharged & intercooled Maximum output according to DIN 247 KW at 2,200 rpm 336HP
Displacement 11.596L Min. fuel consumption ≤198 g/kwh
Transmission Model Fuller RT-11509CV Operating type Manual shift with hydraulic assistant
Transmission Type With constant-mesh-gear braker Constant-mesh 8 forward & 1 reverse 8 speed shift
Front axle model Steyr 6.5T Rear axles model Steyr 13T
Steering system model ZF8098, (Germany ZF ,made in China) Electrics Operating voltage 24V, negative grounded
Driver’s cab size 2,030*2,490*2,623 mm Wheelbase 3,600 +1,350 mm
Cargo body size 19.3CBM Maximum driving speed 92 km/h
Fuel tank capacity 380 L
