19 Ton Heavy Duty Tipper Truck
| Model | M1929D | Engine model | Steyr WD615.50 |
|---|---|---|---|
| Engine Type | Diesel, 4-stroke, direct injection engine | Engine | 6-cylinder in-line with water cooling, turbocharged & intercooled |
| Maximum output according to DIN | 213 KW at 2200 rpm 290HP | Displacement | 9.726 L |
| Min. fuel consumption | ≤213 g/ kwh | Displacement criterion | EUR 2 |
| Transmission Model | Fuller RT-11509C | Operating type | Manual shift with hydraulic assistant |
| Transmission Type | With constant-mesh-gear synchronizer | Constant-mesh | 9 forward & 1 reverse 9 speed shift |
| Axle | Front axle model: Steyr 6.5T Rear axle model: Steyr 13T | Steering system | Model: ZF8098, (Germany ZF , made in China) |
| Electrics Operating voltage | 24V, negative grounded | Wheelbase | 4,000 mm |
| Cargo body size | 12 CBM | Driver | 2030*2490*2483 mm |
| Gross vehicle weight | 19,000 kg | Maximum loading capacity | 10,000 kg |
| Fuel tank capacity | 300 L | Maximum driving speed | 92 km/h |
Company introduction
Hubei Qixing Group is a state-owned large-scale enterprise group, which was founded in 1980. We're a national key high-tech enterprise, which mainly engaged in the production and operation of automobile body& chassis, automobile mould, special vehicle and spare parts, intelligent equipment, photovoltaic energy, new energy, etc. Qixing has two major industrial parks which are Qixing Machinery and photovoltaic comprehensive development park, five major service entities which are international trade, hotel, logistics, natural gas and real estate. Qixing Group has 18 subsidiaries and more than 2,600 employees, covering an area of 1.33 million square meters and total assets is more than 5 billion yuan. The annual output value is more than 7 billion yuan. The vehicle body is the pillar industry of the Qixing Group.
Our Services
1. Design and produce all kinds of truck cabins, SKD/CKD trucks, Electric trucks and their related tooling for different uses;
2. Design new inner decoration and outer vehicle body;
3. Develop new moulds and tooling& jig;
4. Design and produce the interior parts like the door trim, dashboard, roof ceiling, floor mat etc.;
5. Full production lines like pressing, welding, painting, generally assembling, test and so on;
6. Modification on existing cabin, truck and electric truck to meet the customer's requirements;
7. Design power train and totally new diesel truck and electric trucks.
Workshop

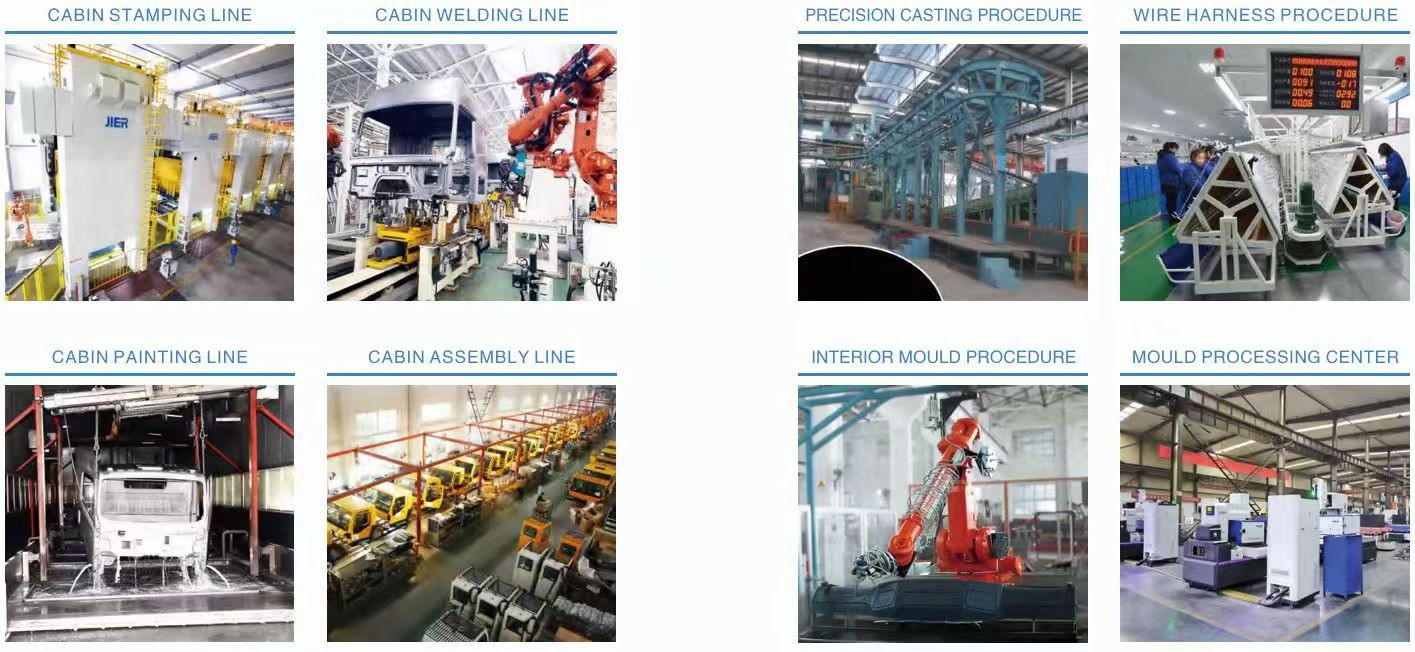

Qixing has our own technical center which is in charge of the design and development, we also have the full production lines, such as casting line, CNC center for making the mould, automatic pressing line/ welding line/ painting line, general assembly line, test center and so on, which means we could control the every single process to ensure the quality of our products.
Packing & Delivery
1) CBU: Bare/naked by RO-RO;
2) SKD: Special transportation bracket/frame for cab, frame, cargo box, engine, gearbox, front and rear axle, etc. or special wooden case packing for export;
3) CKD: The six major parts of the cab are packed with special iron frame and winding film to ensure which is anti-rust and anti-corrosion, and the other parts are packed in the same way of SKD condition.
4) Or packing in accordance with the all requirements of the customer.
Markets and customer
Oversea markets:
Domestic markets
