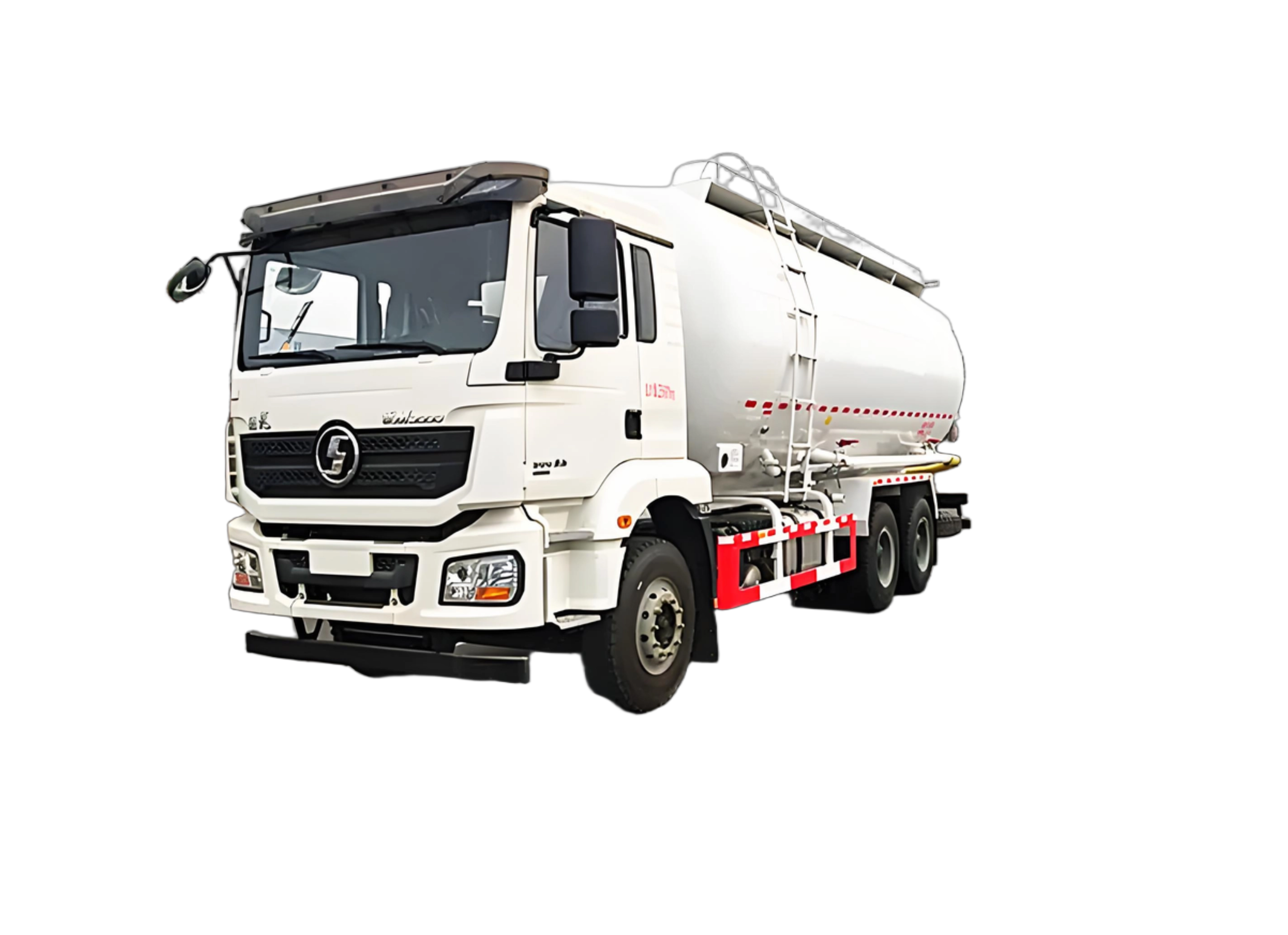

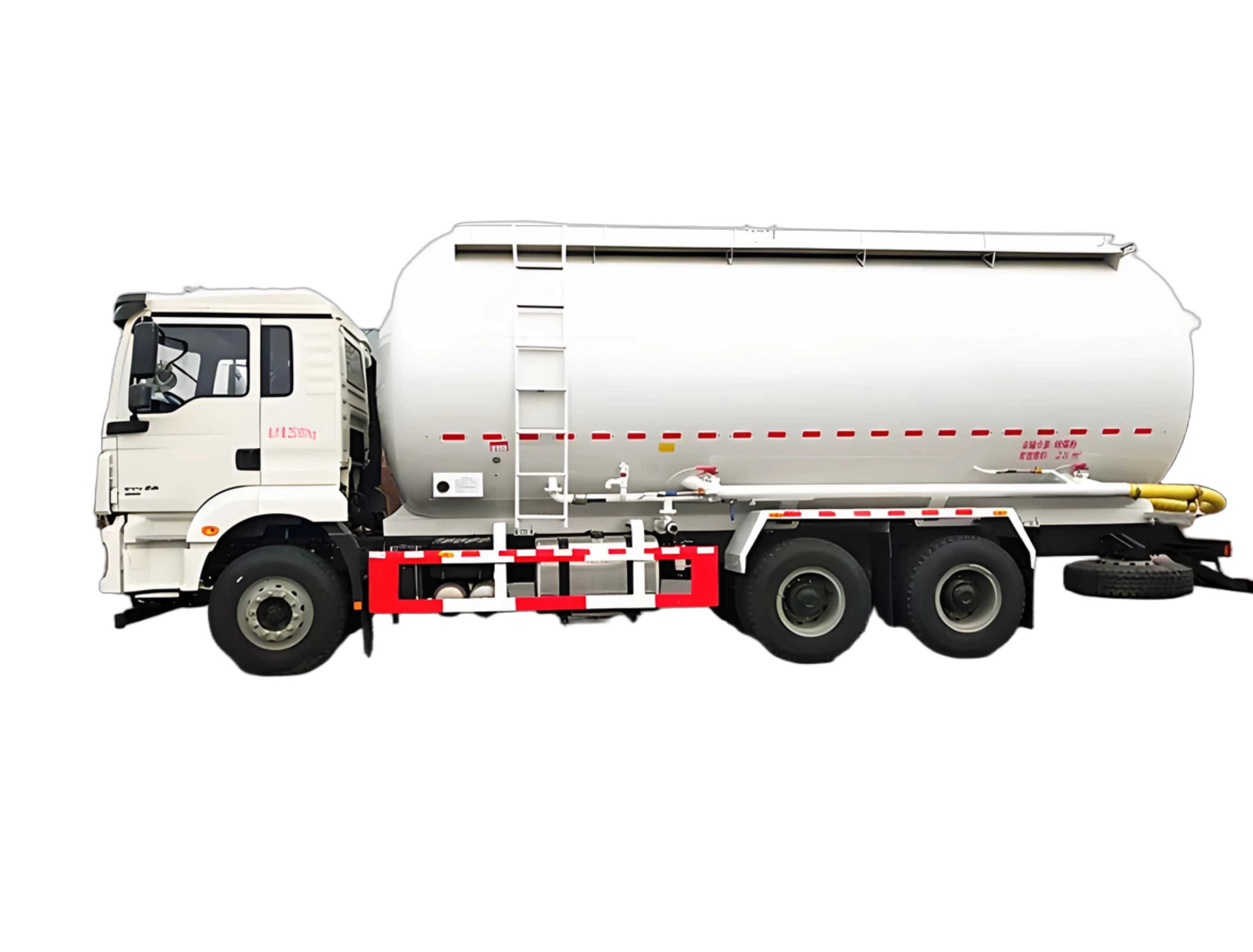

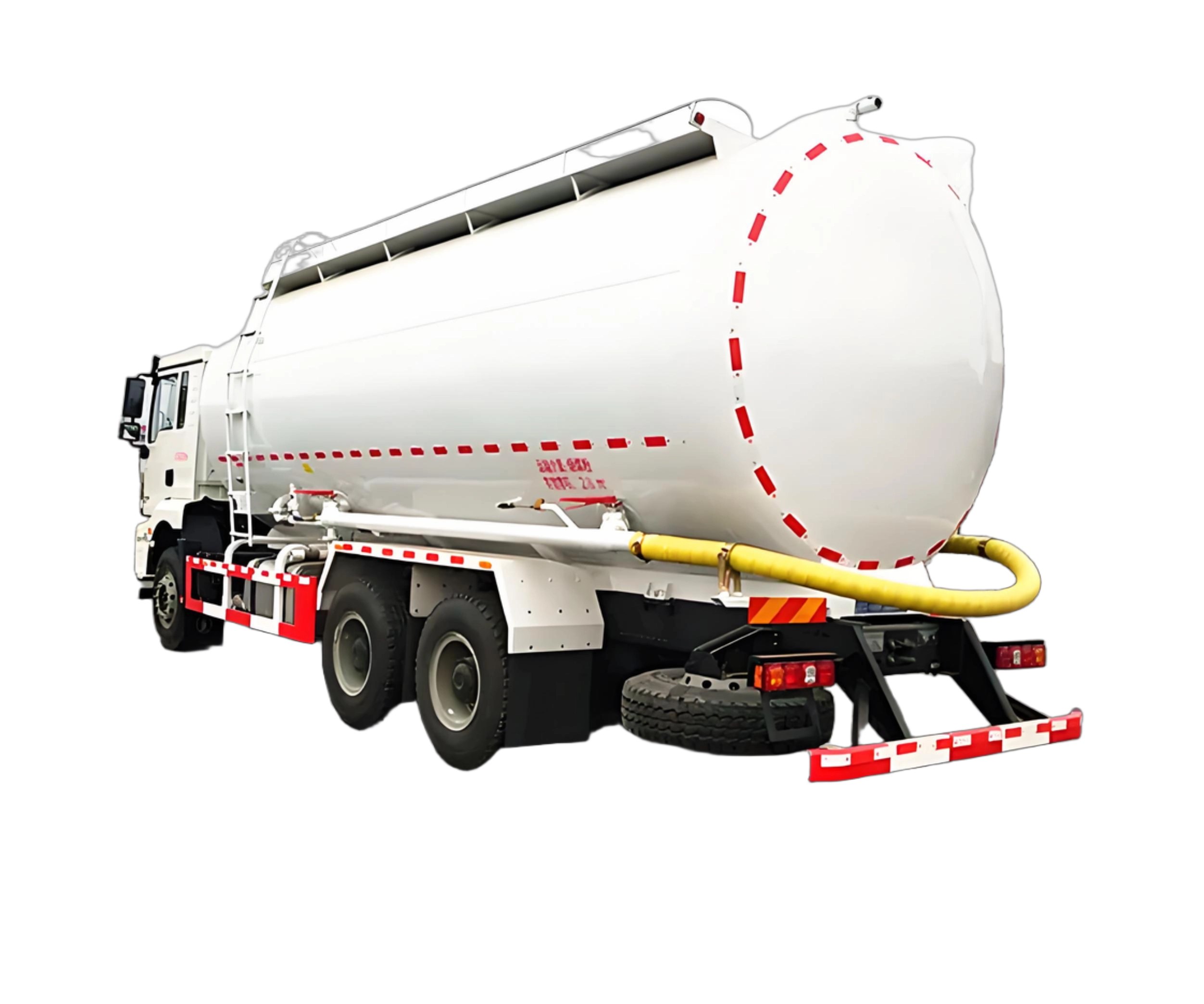

Powder tanker truck
| For loading & delivering dry powdery materials: | cement, fly ash, bituminous coal powder etc. | Drive type: | 6X4, LHD or RHD |
|---|---|---|---|
| Truck overall dimensions (L*W*H) : | 9600 x 2500 x 3300 mm | Wheel base: | 4350 + 1350 mm |
| Curb weight : | 12400 KGS | G.V.W. : | 25000 KGS |
| Chassis brand: | Shacman, Sinotruck, Dongfeng, FAW etc. | Engine: | Weichai brand, 280~310 hp |
| Displacement: | 6.87 ~ 7.5 L | Emission standard: | Euro 3/ 4/ 5/ 6. |
| Transmission: | FAST brand, 10-speed manual. | Tire specification & quantity: | 11.00R20, total 10 tires. |
| Tank material: | Carbon steel Q235A, or aluminum alloy | Tank capacity: | 27,700 liters |
| Tank shape: | horizontal cylindrical shape, with internal V-type or Y-type downward sliding device. | Functional principle: | fluidizes power with compressed air, for improving unloading efficiency. |
| Uploading speed: | up to 1.2 ~ 1.5 tons / minute. | Pressure of compressed air : | 0.2 ~ 0.35 Mpa |
| Air exhausted speed: | 4000 ~ 8000 liters/ min | Accessories: | air compressor, speed controller, pressure relief valve, non-return valve, safety valve, power take-off device, pressure gauge, air intake pipe, ball valve, discharge valve (batterfly valve), conveyor pipe etc. |
Company introduction
Hubei Qixing Group is a state-owned large-scale enterprise group, which was founded in 1980. We're a national key high-tech enterprise, which mainly engaged in the production and operation of automobile body& chassis, automobile mould, special vehicle and spare parts, intelligent equipment, photovoltaic energy, new energy, etc. Qixing has two major industrial parks which are Qixing Machinery and photovoltaic comprehensive development park, five major service entities which are international trade, hotel, logistics, natural gas and real estate. Qixing Group has 18 subsidiaries and more than 2,600 employees, covering an area of 1.33 million square meters and total assets is more than 5 billion yuan. The annual output value is more than 7 billion yuan. The vehicle body is the pillar industry of the Qixing Group.
Our Services
1. Design and produce all kinds of truck cabins, SKD/CKD trucks, Electric trucks and their related tooling for different uses;
2. Design new inner decoration and outer vehicle body;
3. Develop new moulds and tooling& jig;
4. Design and produce the interior parts like the door trim, dashboard, roof ceiling, floor mat etc.;
5. Full production lines like pressing, welding, painting, generally assembling, test and so on;
6. Modification on existing cabin, truck and electric truck to meet the customer's requirements;
7. Design power train and totally new diesel truck and electric trucks.
Workshop
Qixing has our own technical center which is in charge of the design and development, we also have the full production lines, such as casting line, CNC center for making the mould, automatic pressing line/ welding line/ painting line, general assembly line, test center and so on, which means we could control the every single process to ensure the quality of our products.
Packing & Delivery
1.CBU: Bare/naked by RO-RO;
2.SKD: Special transportation bracket/frame for cab, frame, cargo box, engine, gearbox, front and rear axle, etc. or special wooden case packing for export;
3.CKD: The six major parts of the cab are packed with special iron frame and winding film to ensure which is anti-rust and anti-corrosion, and the other parts are packed in the same way of SKD condition.
4.Or packing in accordance with the all requirements of the customer.
Markets and customer
