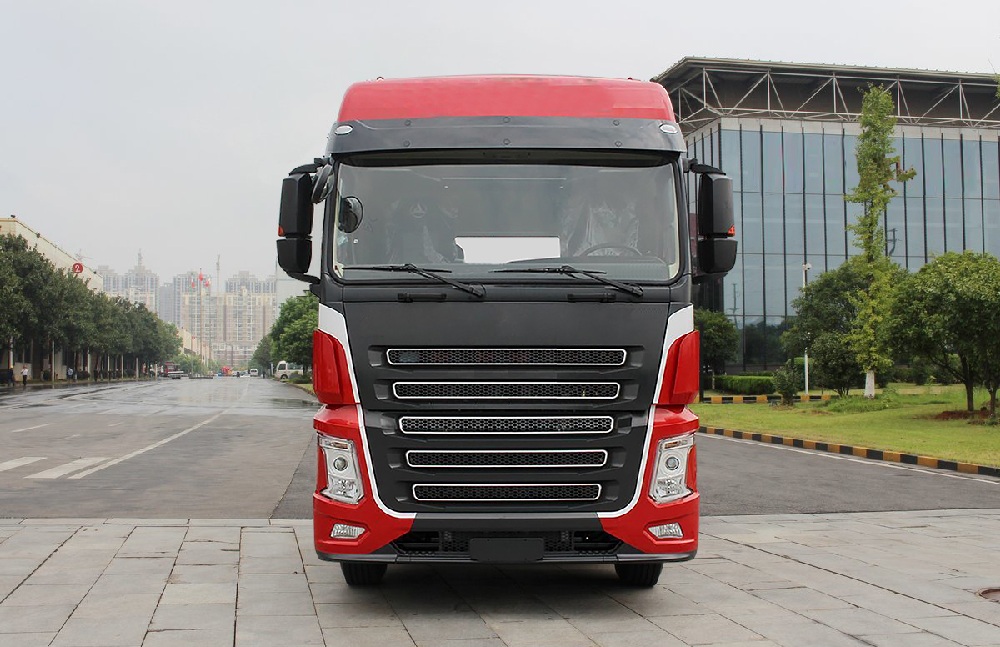

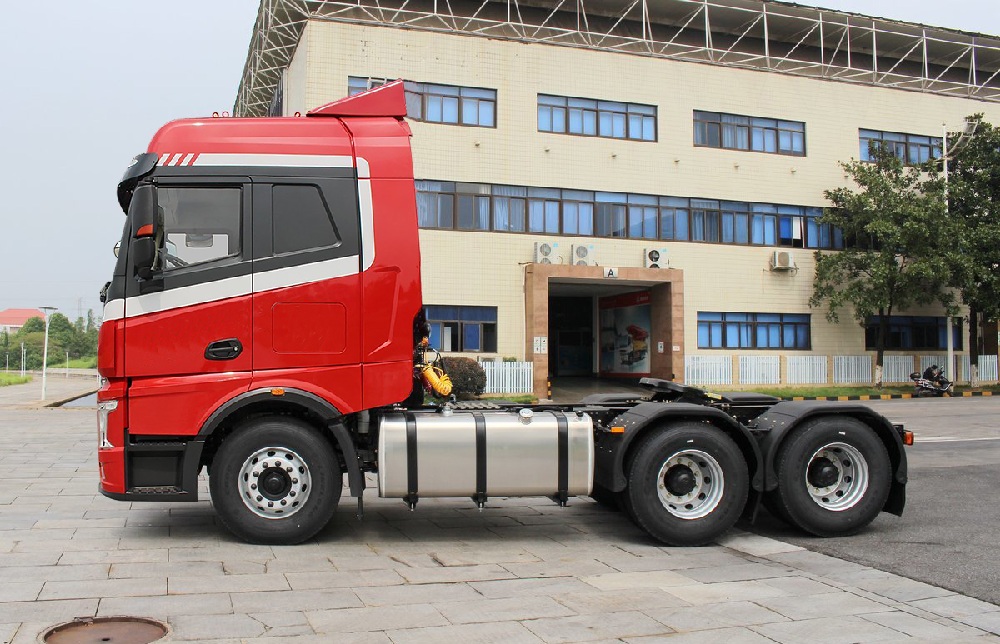

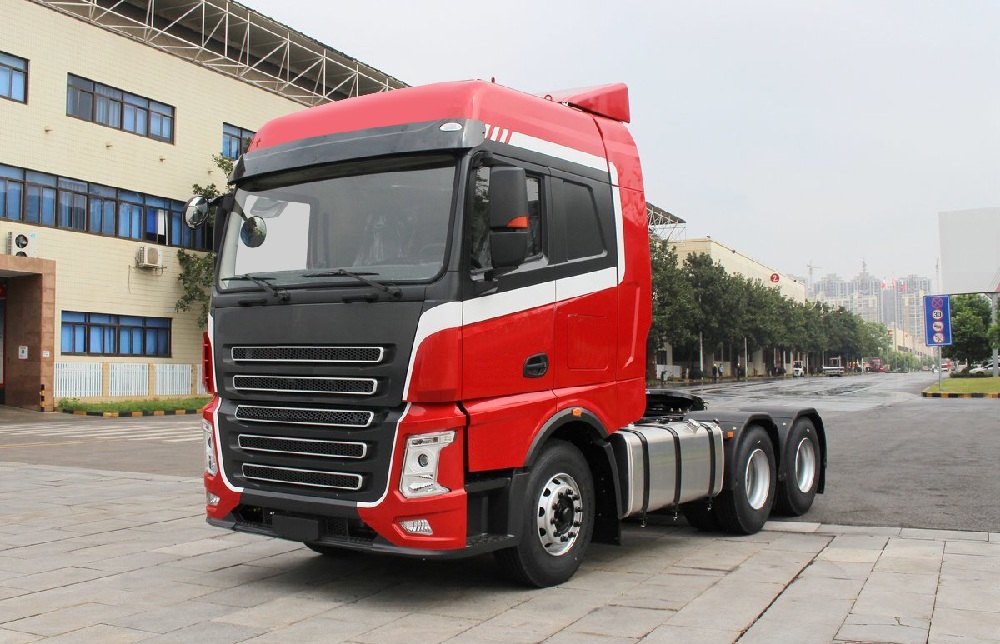

49-tonne 6x4 Tractor

基本信息Basic Information
1	驱动形式 Drive Form		6×4
2	轴距 Wheelbase		3300+ 1350（1400） mm
3	前/后悬长度Front/Rear Overhang		1550mm/750mm
4	整车尺寸 Overall Vehicle Dimensions		6950（7000） ×2500×3285 mm
5	前/后轮距 Front/Rear Track		2059/1860 mm
6	整车重量 Curb Weight		8500kg
7	总质量 Gross Vehicle Weight (GVW)		25000kg
8	最大牵引总质量Max. Towing Mass (GCW)		49000kg
9	接近角/离去角 Approach/Departure Angle		18°/21°
10	最高时速 Max. Speed		>100km/h
11	最大爬坡度Max. Gradeability		>30%
12	最小离地间隙Min. Ground Clearance		>250mm
13	最小转弯半径 Min. Turning Radius		<11m
14	驾驶位 Driver Position		Left Hand Drive (LHD)
发动机参数Engine Parameters
15	品牌 Brand		东风康明斯Dongfeng Cummins
16	型号 Model		Z 14E48051
17	进气形式 Aspiration		涡轮增压、空空中冷 Turbocharged, Air-to-Air Intercooled
18	气缸数 Cylinders		6
19	燃料种类 Fuel Type		柴油 Diesel
20	排量 Displacement		14L
21	排放标准 Emission Standard		欧五机型 （去掉尾气处理系统）Euro V Engine (Exhaust Treatment System Removed)
22	最大马力Max. Horsepower		480 hp
23	最大功率 Max. Power		353kW
24	最大扭矩Max. Torque		2400Nm
25	额定转速 Rated Speed		1600rpm
26	发动机形式 Engine Type		直列六缸、 电控高压共轨 Inline 6-cylinder, Electronic Control High-Pressure Common Rail
变速器参数Transmission Parameters
27	品牌 Brand		东风康明斯赢动Dongfeng Cummins Endurant
28	变速器型号 Transmission Model		EHDM-26N 112C
29	档位信息Gear Ratios		14.43/11.05/8.44/6.46/4.95/3.79/2.91/2.23/1.70/1.30/1.00/0.77/R 1 16.92/R2 12.95
30	档位信息 Gear Type		AMT手自一体AMT (Automated Manual Transmission)
31	液力缓速器Hydraulic Retarder		可选Optional
32	PTO		无None
前悬架Front Suspension
33	结构 Structure		半椭圆式钢板弹簧+筒式减震器Semi-elliptical Leaf Spring + Telescopic Shock Absorber
前桥Front Axle
34	车桥类型 Axle Type		锻造工字梁、带ABS 、 自动调整臂、摩擦片报警器 Forged I-beam, with ABS, Automatic Slack Adjuster, Lining Wear Sensor
35	额定承载能力 Rated Load Capacity		7500kg
36	制动器形式 Brake Type		盘式制动器 Disc Brake
37	制动类别Brake Category		气制动 Air Brake
38	工作压力 Working Pressure		10bar
39	制动气室形式 Brake Chamber Type		单膜片式 Single Diaphragm
后悬架Rear Suspension
40	结构 Structure		四气囊式空气悬架Four-Air-Bag Air Suspension
后桥Rear Axle
41	车桥类型 Axle Type		单级减速、铸造桥壳、带ABS 、 自动调整臂、摩擦片报警器 Single Reduction, Cast Housing, with ABS, Automatic Slack Adjuster, Lining Wear Sensor
42	额定承载能力 Rated Load Capacity		13000kg*2
43	制动器形式 Brake Type		鼓式制动器 Drum Brake
44	制动类别 Brake Category		气制动 Air Brake
45	工作压力 Working Pressure		10bar
46	制动气室形式Brake Chamber Type		串联式双腔制动气室Tandem Dual-chamber Brake Chamber
47	速比 Ratio		4.111
转向系统Steering System
48	类型 Type		循环球式液压动力转向 Recirculating Ball Hydraulic Power Steering
49	转向助力形式 Power Steering Type		液压转向助力 Hydraulic Power Steering
50	驾驶位 Driver Position		左置Left Hand Side
油箱 Fuel Tank
51	油箱材质 Material		铝合金 Aluminum Alloy
52	油箱容积 Capacity		1000L
底盘车架 Chassis Frame
53	尺寸 Dimensions		940/850*300*80*（8+8）mm
54	材料 Material		610L
55	结构 Structure		变截面、铆接式、双层梁 Variable Cross-section, Riveted, Double-layer Beam
制动系统 Braking
6  ki	ABS防抱死 ABS Anti-lock Braking		四通道双回路H型 Four-channel Dual-circuit H-type
57	辅助制动 Auxiliary Brake		发动机缸内制动Engine Exhaust Brake (or Jake Brake)
58	驻车制动 Parking Brake		断气驻车 Spring Brake (Parking by Air Cut-off)
59	应急制动Emergency Brake		手控断气制动 Manually Controlled Air Cut-off Brake
60	挂车阀Trailer Valve		带Equipped
61	制动系统Brake System		ABS+EBL+ASR
62	储气筒Air Reservoir		铝合金Aluminum Alloy

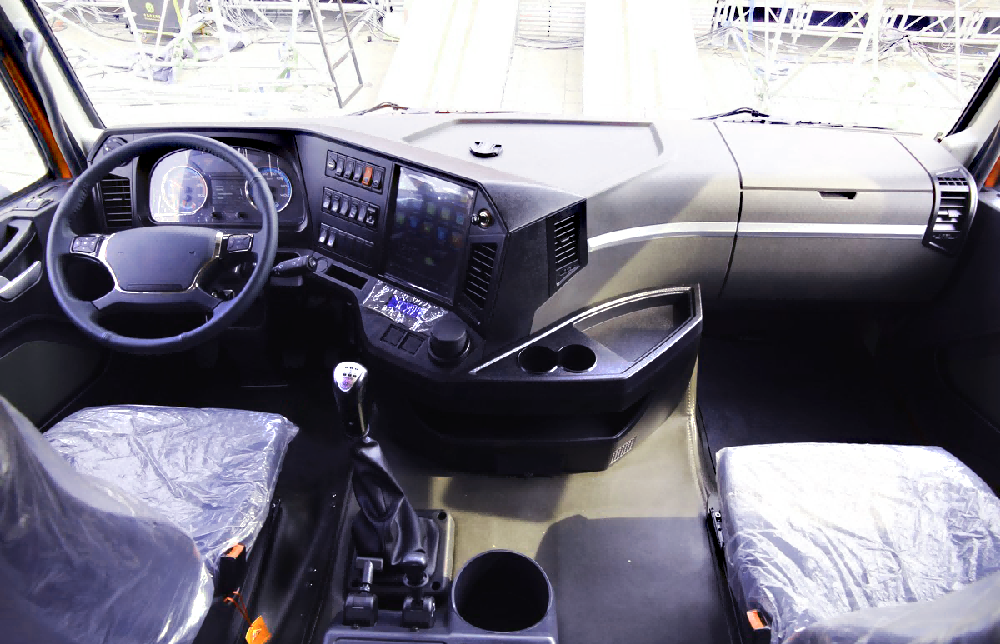

驾驶室Cab
63	型号Model		PW22TGA系列 PW22TGA Series
64	类别Category		平头、单卧铺Flat-nose, Single Berth
65	驾驶室悬置Cab Suspension		四点悬浮、气囊悬架Four-point Air Suspension
66	驾驶室举升系统Cab Lifting System		手自一体式Manual/Automatic Integrated
车轮Wheels & Tires
67	钢圈型号Rim Model		22.5*9.0
68	轮胎型号Tire Model		315/80R22.5
69	数量Quantity		10
其它Other
70	后视摄像头Rearview Camera		选配Optional
71	定速巡航Cruise Control		带Equipped
72	后牵引座Rear Fifth Wheel		带Equipped

       Product Features

              1.Cummins 480HP Euro V Engine paired with Cummins Endurant 12+2 AMT Transmission
              2.Left-hand drive & right-hand drive available
              3.Four-point air suspended cabin for superior driving comfort.
              4.Equipped with ABS, EBL and ASR for comprehensive driving safety
              5.Maximum GCW reaches 49 tons, delivering powerful heavy hauling capacity.

           Company introduction

Hubei Qixing Group is a state-owned large-scale enterprise group, which was founded in 1980. We're a national key high-tech enterprise, which mainly engaged in the production and operation of automobile body& chassis, automobile mould, special vehicle and spare parts, intelligent equipment, photovoltaic energy, new energy, etc. Qixing has two major industrial parks which are Qixing Machinery and photovoltaic comprehensive development park, five major service entities which are international trade, hotel, logistics, natural gas and real estate. Qixing Group has 18 subsidiaries and more than 2,600 employees, covering an area of 1.33 million square meters and total assets is more than 5 billion yuan. The annual output value is more than 7 billion yuan. The vehicle body is the pillar industry of the Qixing Group.

Our Services

1. Design and produce all kinds of truck cabins, SKD/CKD trucks, Electric trucks and their related tooling for different uses;
           2. Design new inner decoration and outer vehicle body;
           3. Develop new moulds and tooling& jig;
           4. Design and produce the interior parts like the door trim, dashboard, roof ceiling, floor mat etc.;
           5. Full production lines like pressing, welding, painting, generally assembling, test and so on;
           6. Modification on existing cabin, truck and electric truck to meet the customer's requirements;
           7. Design power train and totally new diesel truck and electric trucks.

Workshop

Qixing has our own technical center which is in charge of the design and development, we also have the full production lines, such as casting line, CNC center for making the mould, automatic pressing line/ welding line/ painting line, general assembly line, test center and so on, which means we could control the every single process to ensure the quality of our products.

Packing & Delivery
         1.CBU: Bare/naked by RO-RO;
         2.SKD: Special transportation bracket/frame for cab, frame, cargo box, engine, gearbox, front and rear axle, etc. or special wooden case packing for export;
         3.CKD: The six major parts of the cab are packed with special iron frame and winding film to ensure which is anti-rust and anti-corrosion, and the other parts are packed in the same way of SKD condition.
         4.Or packing in accordance with the all requirements of the customer.
