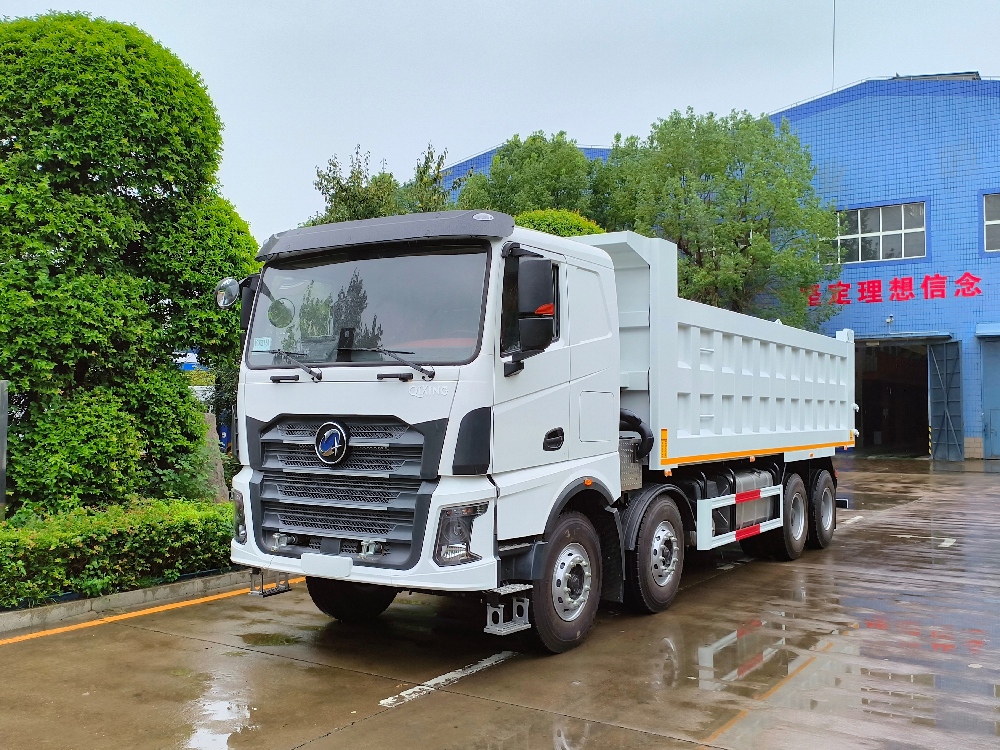

32-tonne 8x4 Dumper Truck
Dimensions&Weight
尺寸和重量Overall length（mm）外形尺寸
9625×2550×3285
Front overhang (mm)前悬
1550
Rear overhang (mm)后悬
830
Wheelbase轴距(mm)
2000+3775+1470
GVW(kg）总重
32000
Curb Weight Without Upper Body(KG)
不含上装整备质量12080
Rated Payload (KG)(额定载重）
19920
Actual Max Gross Weight(KG）（实际最大总质量）
50000
Actual Testing Max Payload (KG)
(实际测试 最大承载重量）37920
Performance
性能参数Drive type驱动形式
8×4
Max. speed(km/h)最高速度
≤90
Gradeability(％)爬坡度
>30%
Minimum ground clearance (mm)
最小离地间隙＞250
Minimum turning radius(m)
最小转弯半径＜12

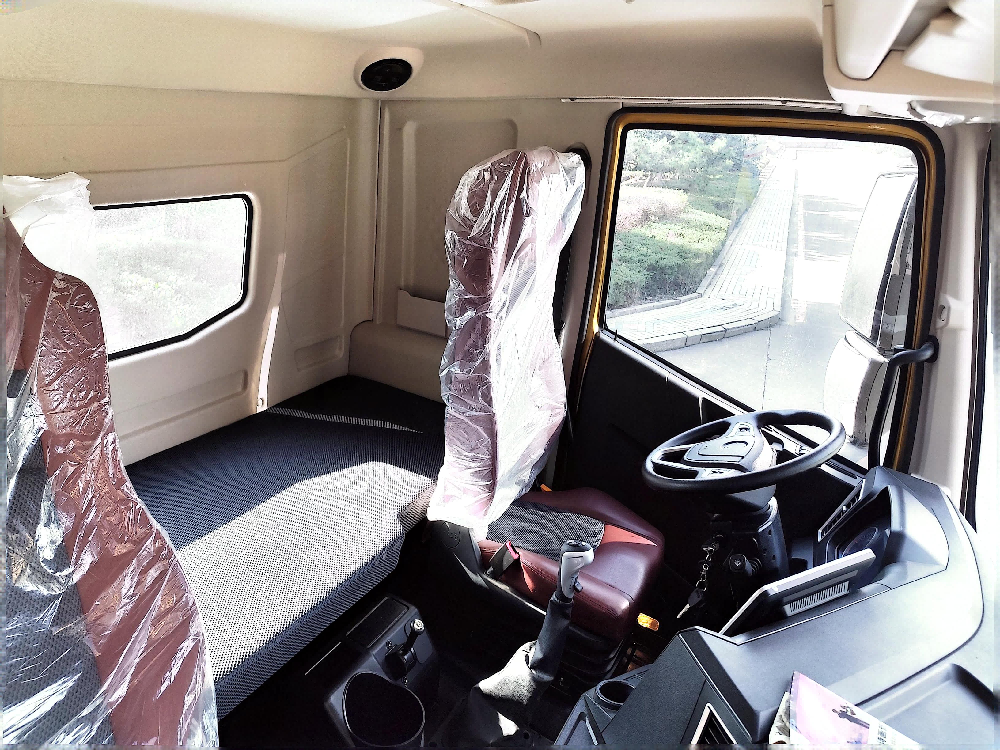

Cabin
驾驶室Model型号
QXPW2TGA Flat Roof Cabin
QXPW2TGA 平顶驾驶室Dimension（mm）尺寸
2200×2500×2790
Sleeper卧铺
1 foldable bed
1个折叠床Tilting Mechanism翻转机构
Manual and electric integrated
手电一体Engine
发动机Model型号
Y&C ENGINE YC6K1248-50
玉柴发动机 YC6K1248-50Four-stroke四冲程
√
Turbocharged涡轮增压
√
intercooled中冷
√
high-pressure common rail fuel system
高压共轨燃油系统√
Max. Power(hp)最大功率
480HP
Max torque（N.m/rpm）最大扭矩
2250
Displacement (L) 排量
12.155
Controller type控制器类型
electrical 电控
Emission排放
Euro V + EEV，SCR
Transmission
变速箱Model型号
FAST 12JSDX240K, with PTO
法士特12JSDX240K，带取力器Type类型
Dual Auxiliary Rail,Cast Iron Housing Structure
双副轨，铁质壳体结构Operation Type操纵型式
Cable-operated,single H valve
软轴操纵，双H阀Max. input torque(N.m)最大输入扭矩
2400
Gear档位
Manual手动
Forward Gear 前进挡
12
Reserve Gear 倒挡
2
Ratio速比
15.615/12.385/9.386/7.33/5.726/4.46/3.5/2.776/2.104/1.64/1.28/1.00 R1=14.852, R2=3.329
Clutch
离合器Brand品牌
FAST-EATON
法士特伊顿Type类型
Single 、 dry plate clutch
单片、干式离合器Plate diameter
板直径（mm）φ430
Suspension
悬置Front前悬
Leaf spring, ZF shock absorber, stabilizer
板簧，ZF减震器，稳定杆Rear后悬
Leaf spring
板簧Axle
车桥Front Axle Rated Load(kg)
前桥额定载荷9.5T
Rear Axle Rated Load(kg)
后桥额定载荷16T×2
Rear Axle Ratio后桥速比
4.266
Pitch Circle Diameter（mm）
车轮螺栓分度圆直径φ335
Brake Drum Size制动鼓尺寸
φ410×160
Brake
制动系统Type类型
Front Drum/Rear Drum
前鼓后鼓Auxiliary braking辅助制动
DRB
缸内制动ABS
√
ASR
√
EBL
√
ABS layout form ABS布置方案
4S/4M
Steering
转向系统Brand品牌
Bosch 博世
Type类型
Recirculating ball type hydraulic power steering
循环球式液压动力转向Ratio速比
22.2-26.2:1
Emergency steering device
应急转向装置√
Wheel
车轮Type类型
315/80R22.5-18PR
Rim size （inch )轮辋尺寸
22.5*9.00
Rim material轮辋材料
Steel 钢
ELECTRICS
电气Starter起动器
Engine belt发动机带
Alternator
交流发电机 Engine belt发动机带
Battery capacity (A. H)
电池容量165*2
FUEL TANK
油箱Capacity容量
550L×2
Material材质
Aluminum alloy
铝合金Ad-Blue Tank
尿素箱Capacity容量
70L
Safty standard
安全标准Day light running lamp
日间行驶灯√
AUTO LIGHT
自动大灯√
Cruise Control
定速巡航控制√

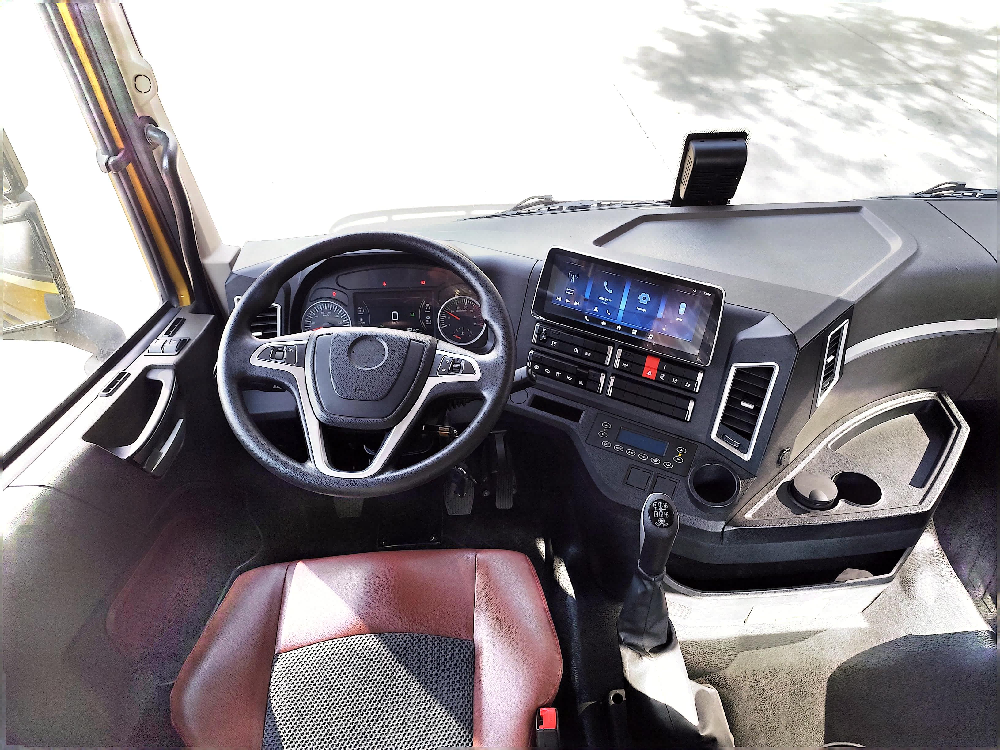

Basic equipment
基础配备Automatic air conditioning，with defrost function
自动空调，带除霜功能√
Rear Fog lamps后雾灯
√
LED headlights LED 前大灯
√
USB port
1
Driver air Suspension seat
驾驶员气囊座椅√
Remote control central door lock
遥控中央门锁√
Event Data Recorder
事件数据记录器√
Power windows
电动车窗√
12.3 inch smart large screen
12.3寸智能大屏√
Front sun shade/Left side visor
前遮阳板+左侧遮阳板√ , Front sun visor can be swiveled to the left
前遮阳板可转至左侧12V Sockets (Two)
12V 插座（两个）√, transformer is required
需要变压器Functional Steering Wheel
多功能方向盘√
Battery switch 电池开关
√
Reverse alarm 倒车警报
√
Product Features
1. Gross Vehicle Weight 32 tons, payload up to 20 tons
2. Powered by Yuchai Euro V 480HP engine, paired with Fast 12+2 manual transmission 3. Premium Bosch steering system 4. Integrated ABS, ASR and EBL for stable braking 5. Fitted with daytime running lights, auto light and cruise control.

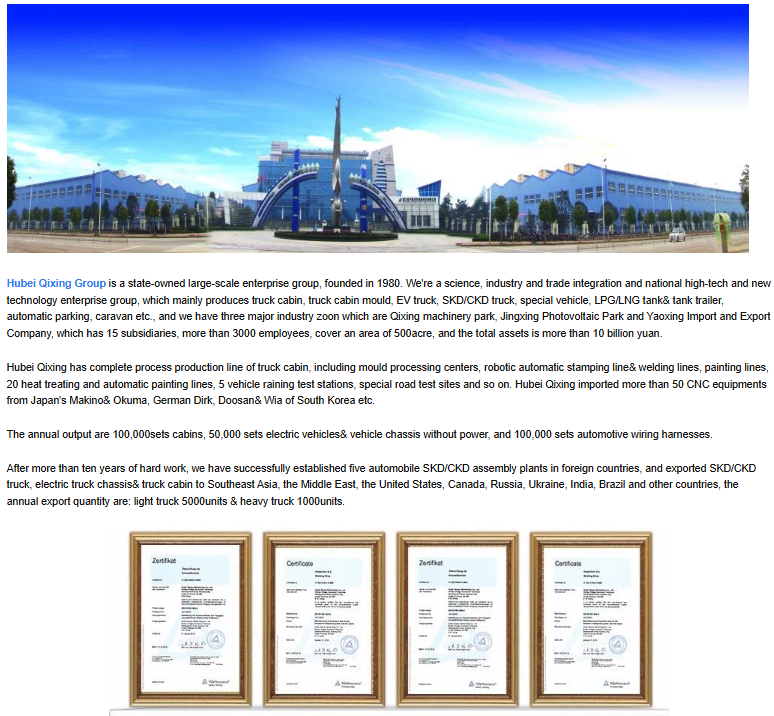

Company introduction
Hubei Qixing Group is a state-owned large-scale enterprise group, which was founded in 1980. We're a national key high-tech enterprise, which mainly engaged in the production and operation of automobile body& chassis, automobile mould, special vehicle and spare parts, intelligent equipment, photovoltaic energy, new energy, etc. Qixing has two major industrial parks which are Qixing Machinery and photovoltaic comprehensive development park, five major service entities which are international trade, hotel, logistics, natural gas and real estate. Qixing Group has 18 subsidiaries and more than 2,600 employees, covering an area of 1.33 million square meters and total assets is more than 5 billion yuan. The annual output value is more than 7 billion yuan. The vehicle body is the pillar industry of the Qixing Group.
Our Services
1. Design and produce all kinds of truck cabins, SKD/CKD trucks, Electric trucks and their related tooling for different uses;
2. Design new inner decoration and outer vehicle body;
3. Develop new moulds and tooling& jig;
4. Design and produce the interior parts like the door trim, dashboard, roof ceiling, floor mat etc.;
5. Full production lines like pressing, welding, painting, generally assembling, test and so on;
6. Modification on existing cabin, truck and electric truck to meet the customer's requirements;
7. Design power train and totally new diesel truck and electric trucks.
Workshop

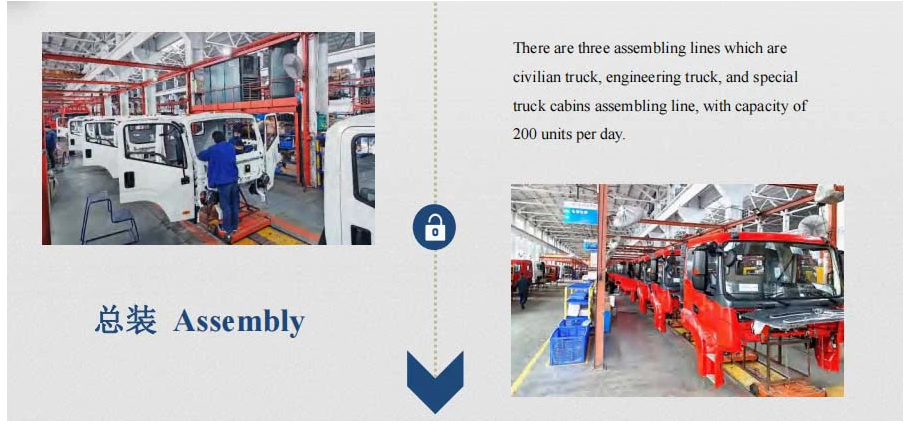

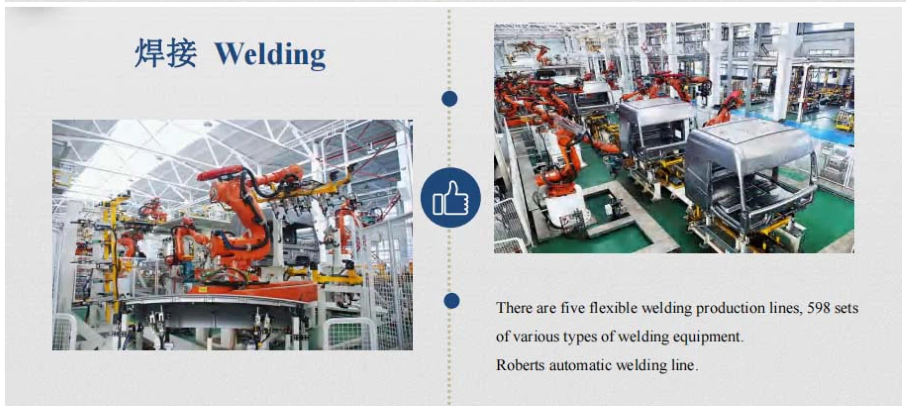

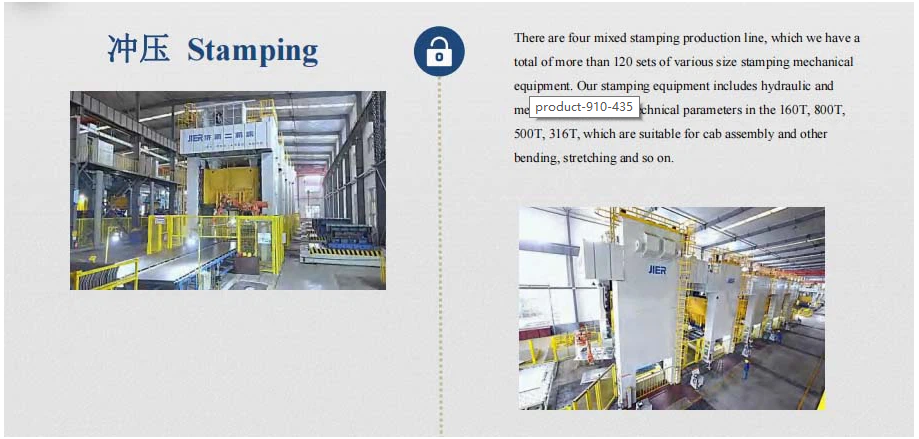

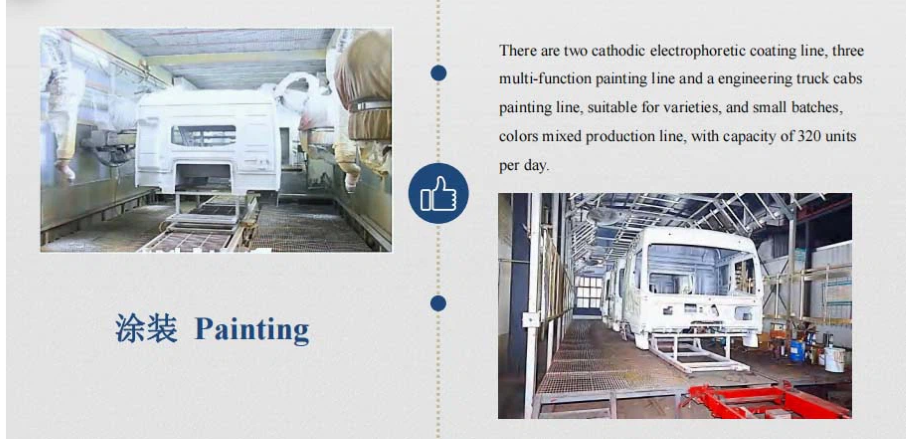

Qixing has our own technical center which is in charge of the design and development, we also have the full production lines, such as casting line, CNC center for making the mould, automatic pressing line/ welding line/ painting line, general assembly line, test center and so on, which means we could control the every single process to ensure the quality of our products.

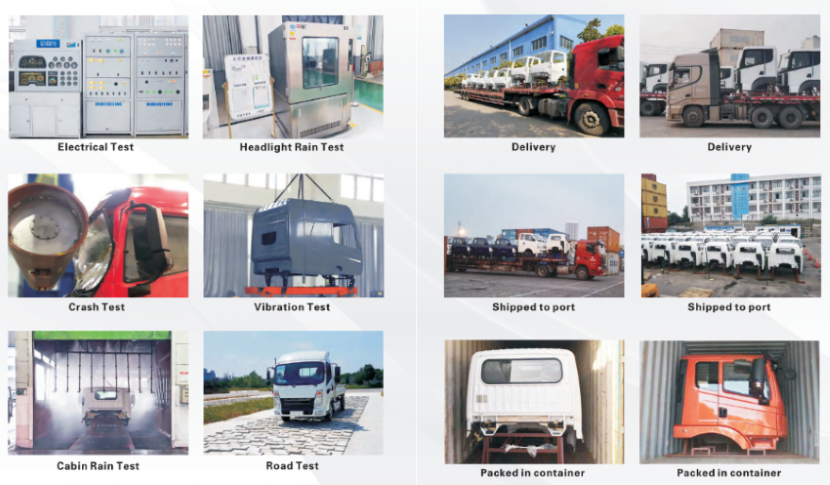

Packing & Delivery
1.CBU: Bare/naked by RO-RO;
2.SKD: Special transportation bracket/frame for cab, frame, cargo box, engine, gearbox, front and rear axle, etc. or special wooden case packing for export;
3.CKD: The six major parts of the cab are packed with special iron frame and winding film to ensure which is anti-rust and anti-corrosion, and the other parts are packed in the same way of SKD condition.
4.Or packing in accordance with the all requirements of the customer.
